High quality carbon
and specific impregnated media

In which sector
do you want to use our media?

Air is filtered for various reasons. Contact us and we will advise you on the right approach.

Activated carbon and chemical filter medium

Gases and harmful particles are invisible and any damage is unpredictable. It is important to first clarify the situation and any presumptions. For example, is there a nuisance odour in a company or space? Has technical equipment been affected? Do people in the environment complain about bad smells? Or should government measures be taken to control toxic or harmful gases?

No business situation is the same. Variables such as the industry, local conditions, the degree and type of production or the specific use of spaces are all decisive. For this reason, the solution is never straightforward. However, one thing is for sure, CF Industrial has an effective means to arrive at a solution: activated carbon and an oxidant filter medium.

Oxidant filter medium

The oxidant filter medium is made on the basis of aluminium oxide mixed with different binders and impregnated with potassium permanganate.

Active carbon

Activated carbon is a porous black material made from wood, peat, coal and coconut husks. The carbon is activated with steam or chemicals, thereby increasing the absorption force. This makes it ideal for air and water purification and for refining edible oils, sugar and other liquids.

Blends

Not every situation can be solved with only activated carbon or an oxidant filter medium. Sometimes a combination of different filter media is necessary. We call this a blend. Depending on the situation, CF Industrial uses different types of blends.

A selection of common solutions

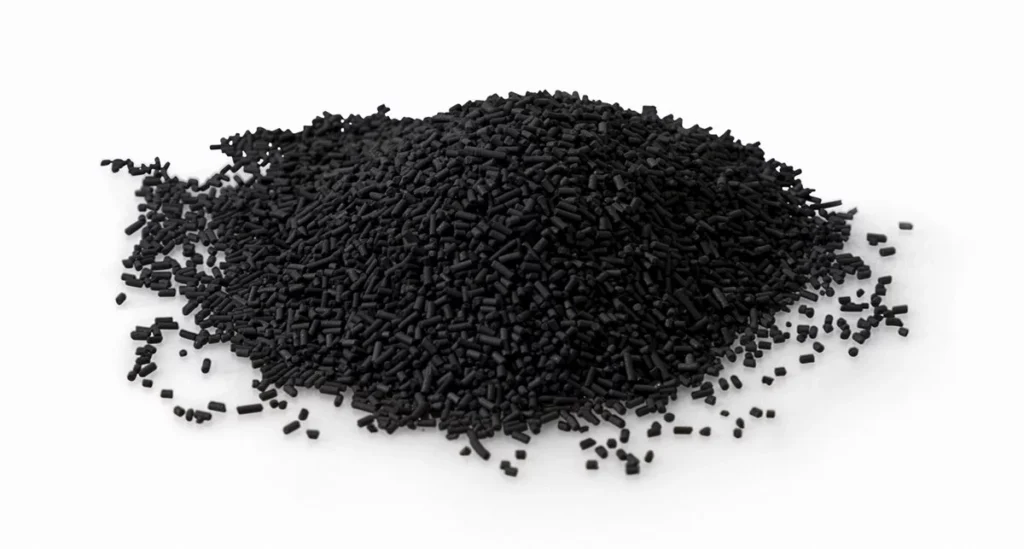

CKV-1

CKV-1 is a 1mm steam activated pelletized coal based activated carbon. The size is not used in our standard cylinders, but is mainly intended for smaller filter cassettes. A smaller pellet ensures faster adsorption but also a higher…

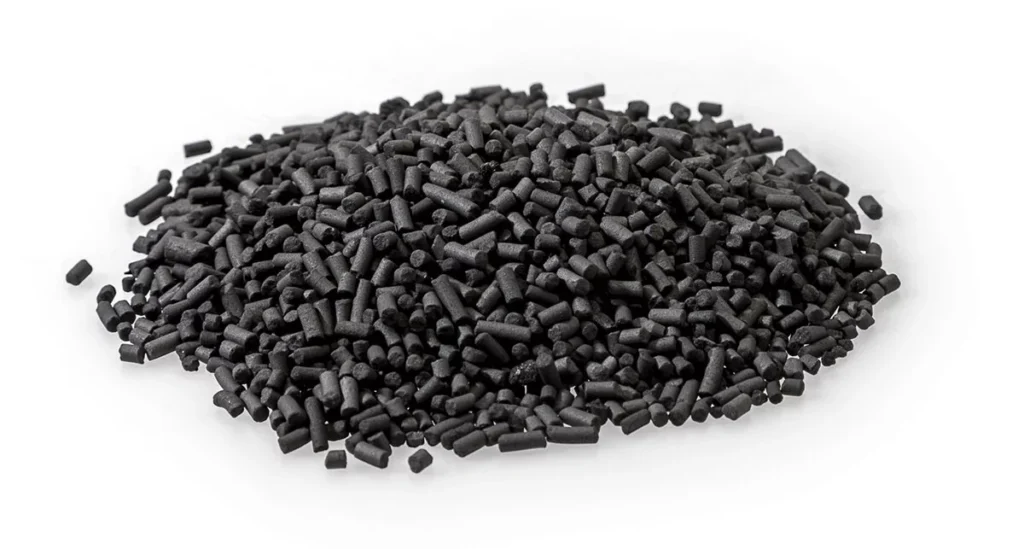

CKV-2

CKV-2 is a 2mm steam activated pelletized coal based activated carbon. The size is not used in our standard cylinders, but is mainly intended for smaller filter cassettes. A smaller pellet ensures faster adsorption but also a higher…

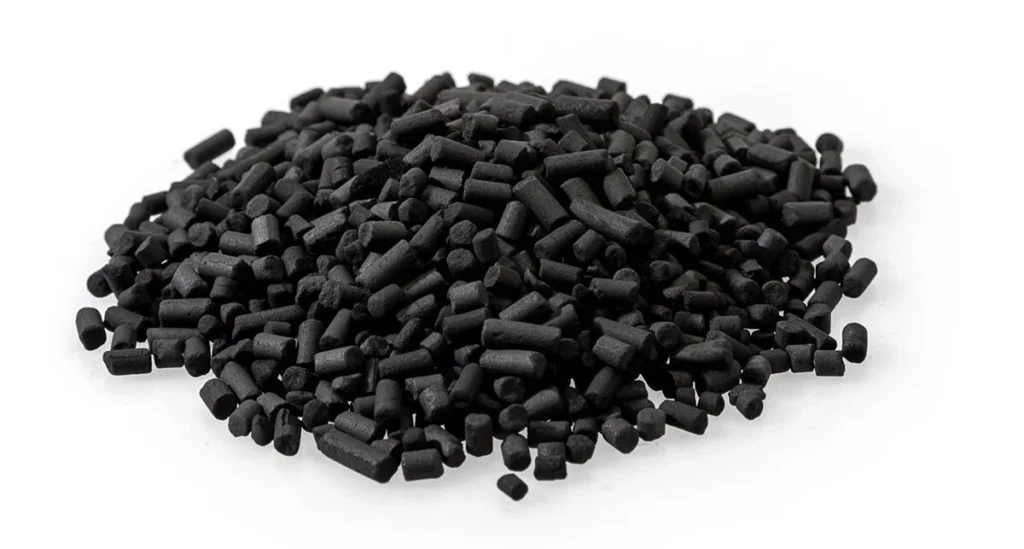

CKV-3

CKV-3 is a 3mm steam activated pelletized coal based activated carbon. It has a good mix of micro- and meso-pores, making it ideal for a wide range of gases. This activated carbon is especially used in smaller cylinders.

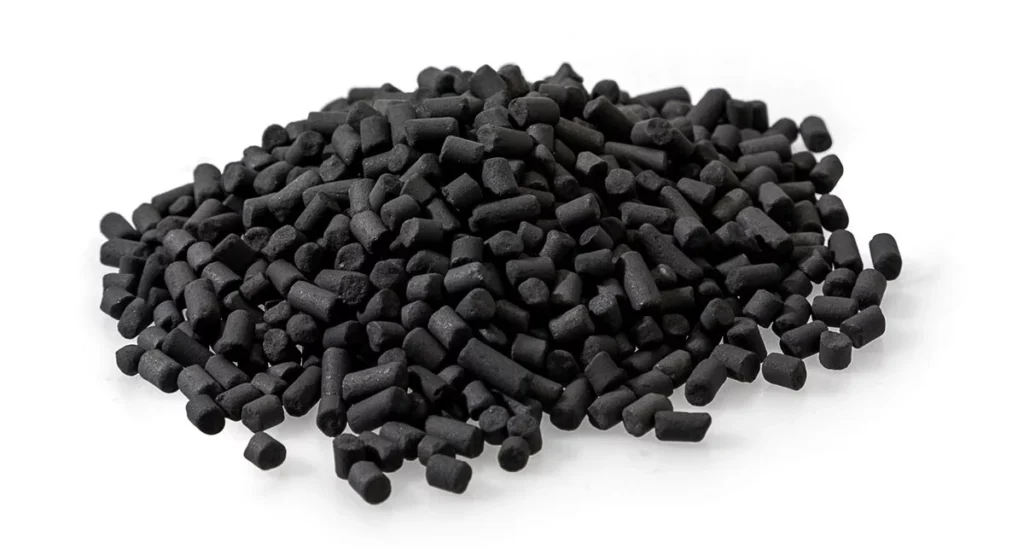

CKV-4

CKV-4 is a 4mm steam activated pelletized coal based activated carbon. It has a good mix of micro- and meso-pores, making it ideal for a wide range of gases. Tests have shown that this carbon has a good capacity for benzene…

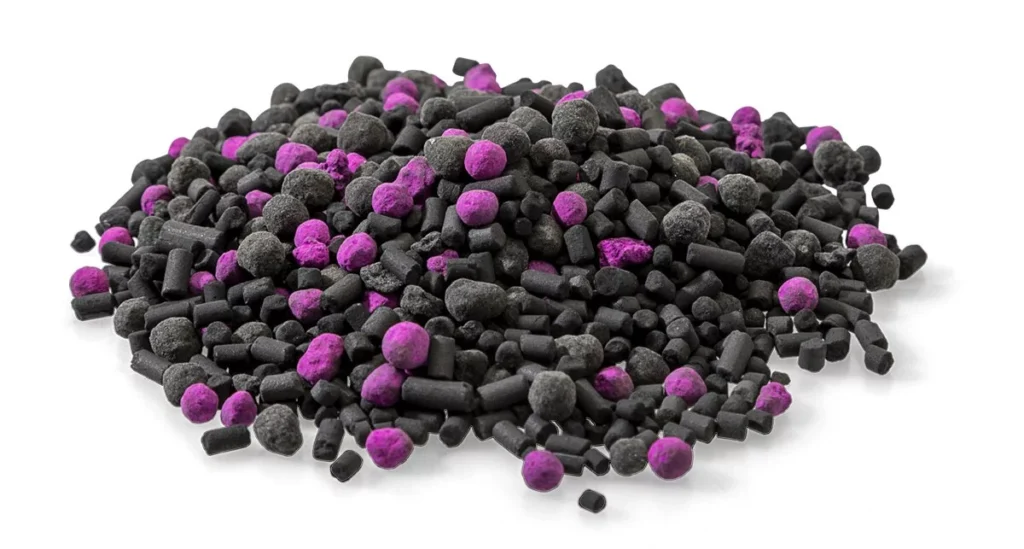

CKT 5025-AF-V3-O8 (-HE)

CKT 5025-AF-V3-O8 (-HE) is a mix of 3 different types of media. In situations where there is no room for multiple filter beds, this mix offers a solution to capture a wide range of gases, including an average concentration of industrial gases…

CKB 5050-V3-O8

CKB 5050-V3-O8 is a mix of 2 different types of media. It uses both adsorption and chemisorption technology to remove the widest possible range of gases. This combination removes odours and corrosive gases and is mainly uses for…

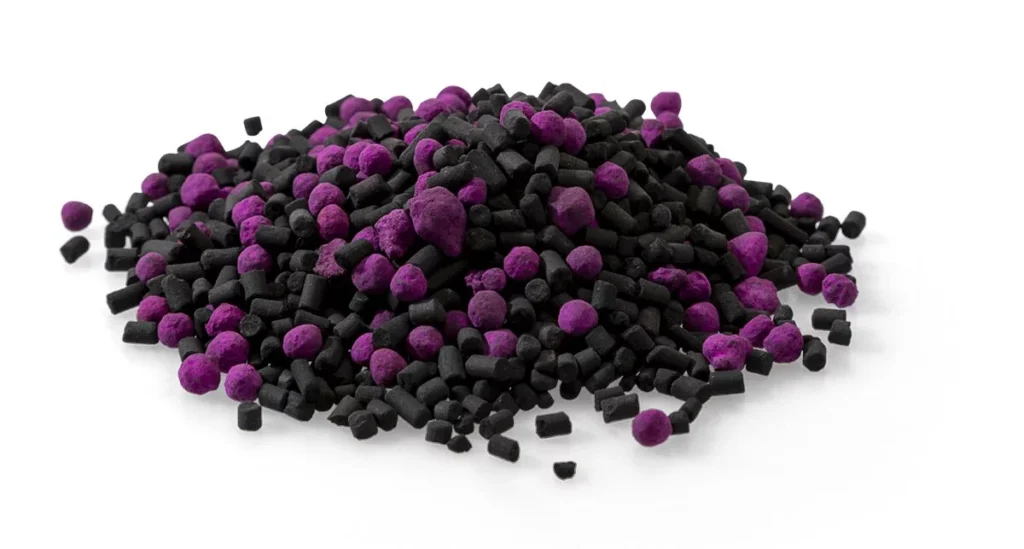

CKB 7525-V3-O8

CKB 7525-V3-O8 is a mix of 2 different types of media. This has been specially developed for spray paint and glue applications where activated carbon alone does not remove all gases. In that case, adding oxidation capacity to the mixture will give the finishing touch to the removal process…

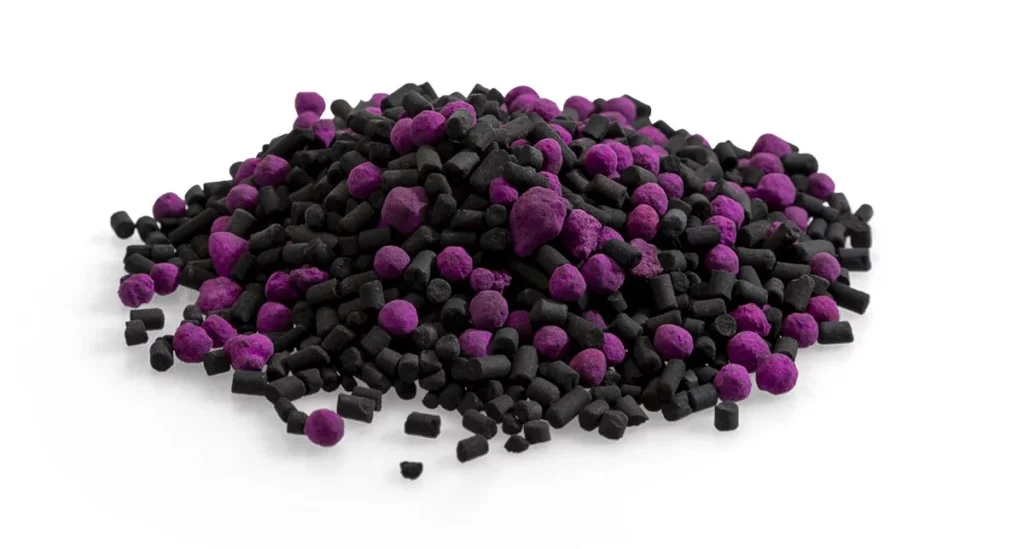

CKB 9010-AF-08(-HE)

CKB 9010-AF-O8(-HE) is a mix of 2 different types of media. This mix of impregnated media has been developed to remove diesel and kerosene exhaust from trucks, trains and aircrafts. It is often used in office buildings, hotels, schools and airports to clean the fresh air supply…

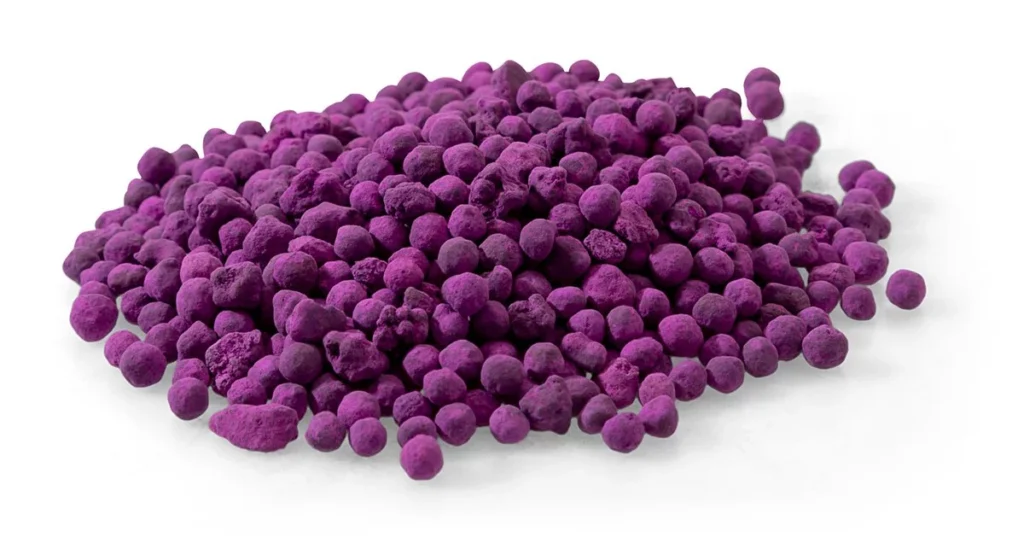

CKO-Purple 8%

CKO-Purple 8% has been developed for the removal of a broad range of acid gases. These are common in for example outside air, in buildings, in industry and in exhaust gases of cars. The gases are removed by means of the chemisorption process in which the gases react…

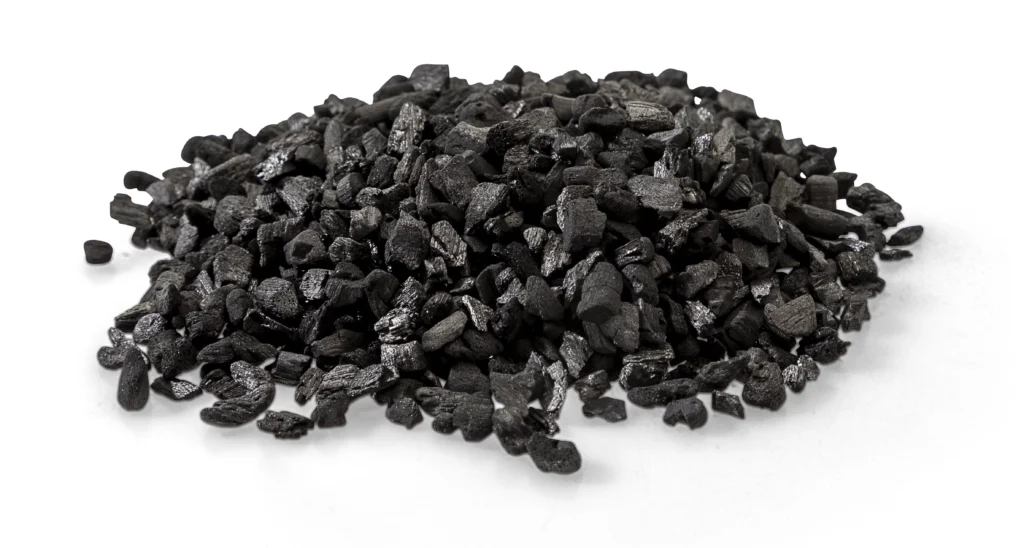

CKG-Super Lite Wood

CKG-Super Lite Wood is a steam activated granulate virgin activated carbon.This activated carbon is made from wood, a renewable raw material. This makes it a more sustainable alternative to traditional activated carbon. Characteristic are the low density and high…

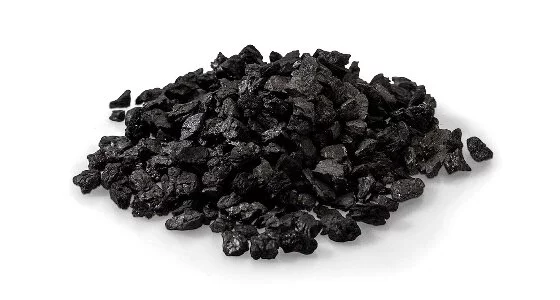

CKG-4x8

CKG-4×8 is a steam activated granulate virgin activated carbon. This activated carbon is made from specially selected bituminous carbon and a good mix of larger and smaller pores. Granular pellet form provides a slightly higher pressure difference, but this is offset by faster adsorption.

CKG-COCOS

CKG-COCOS Granular Coconut Shell is a high activity granular activated carbon manufactured by high temperature steam activation from selected grades of coconut shell. The well-developed microporous structure of the Granular Coconut Shell gives it a significant ..

CKV-SULFREE HE

CKV-Sulfree HE is a high quality impregnated activated carbon based on an extruded cylindrical pellet. Due to this impregnation this coal can be used for catalytic conversion of hydrogen sulphide and other organic sulphur compounds…

CKV-ACID FREE HE

CKV-Acid Free HE is a high quality alkaline-impregnated activated carbon based on an extruded cylindrical pellet. Due to this impregnation this carbon has a high capacity to capture sulphur dioxide…

CKV-Alkali Free HE

CKV- FORMASORB

CKV-Formasorb is an impregnated activated carbon which is specifically suitable for the removal of formaldehyde and a number of other aldehydes…

CKV-HG

CKV-HG (Mercury) is a high quality impregnated activated carbon based on extruded cylindrical pellets. This impregnation makes it possible…

CKV-KIKOH HE

CKV-KIKOH He is a mix of two impregnated activated carbons based on steam activated pelletized coal. It combines the advantages of…

CKV-ABEK

CKV-Abek is a mix of different impregnated activated carbons based on extruded steam-activated coal ranging from 1 to 4mm. It is intended to capture a very broad spectrum of inorganic..
